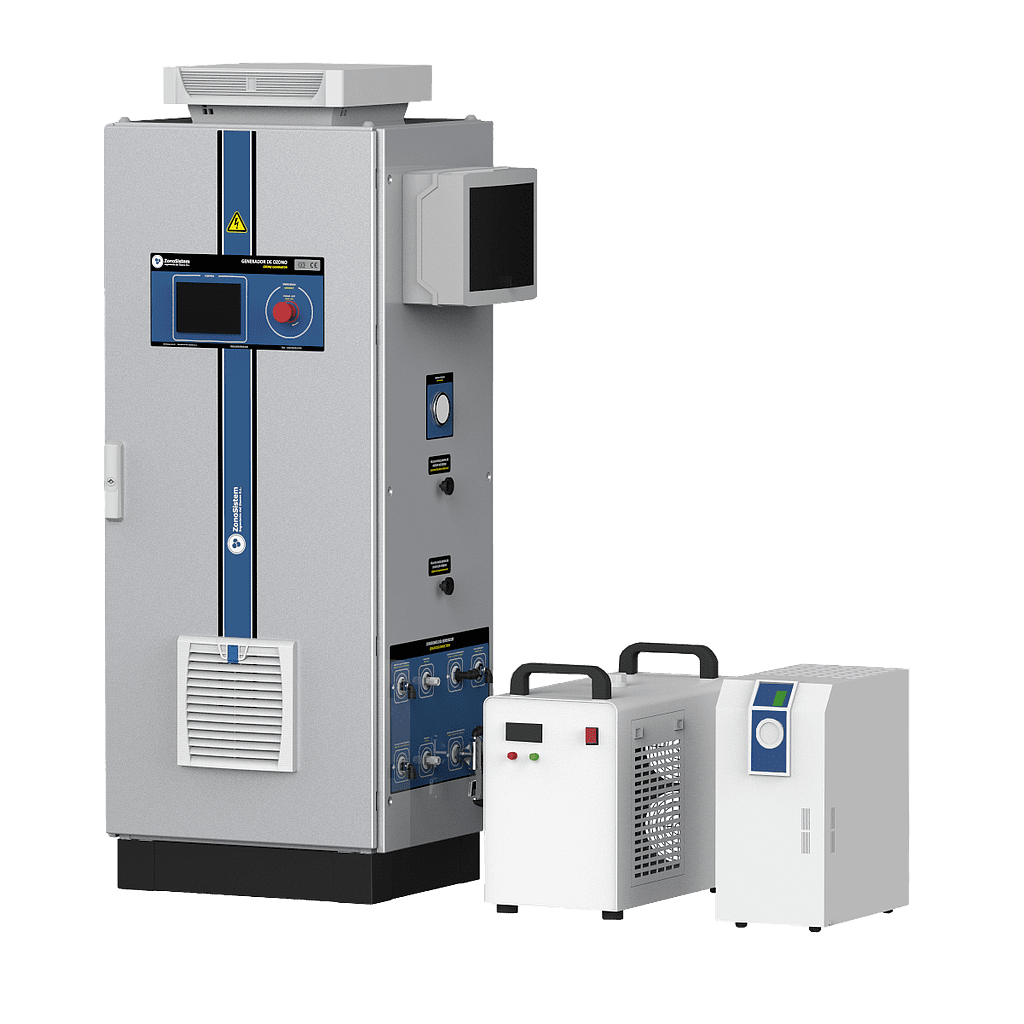

Industrial ozone generator water 80g/h

Glycol-cooled industrial ozone generator with compressor, oxygen concentrator, dryer, chiller and PLC control with touch screen.

Category: Industrial ozone generator for Water treatment

Description

Ozone generator for water treatment 80g/h

Glycol-cooled industrial ozone generator with compressor, oxygen concentrator, dryer, cooler and PLC control with touch screen. Ozone production of 80 g O3/h, at a concentration of 148 g/Nm3. 400 V, 3P+N, 50 Hz, 2.5kW.

Compact glycol-cooled ozone generator with high ozone concentration, air compressor and integrated oxygen concentrator. It also includes filters and refrigeration dryer, chiller, ozone leakage sensor and PLC control, with touch-screen

data logging and remote access. Manufactured with high quality components, ready for electrical connection and operation. Robust, durable and reliable equipment.

Some technical specifications

Control: Via 4.3’ touch PLC, with recipe manager, day programmer, PID control, alarm and maintenance manager.
Wired: ON REMOTE communication, status relays (start, generate, fault). Allows ModBus communication, remote access with total control if you buy the optional Ethernet card.
Sensors: Ozone production amperes, compressed air pressure, oxygen pressure, temperature and flow, ozone leaks, door opening.
Technical valves: Motorised ozone outlet valve, oxygen flow meter with manual regulation.
Ozone generating nucelle: 80 g O3/h shell with borosilicate dielectrics. Glycol-cooled.
Includes: 2 metres of 10 mm Teflon tubing + 2 metres of 16 mm polyurethane tubing + User manual.
Included in the equipment: Refrigeration dryer and water chiller
Compressed air: Prefilter + compressor + filter + refrigeration dryer
Oxygen concentrator: Bicolumn activated alumina concentrator, 95% purity

Net weight: 220 kg
Power supply: 400V, 3P+N, 50Hz
Cooling capacity: 2.5 kW
Dimensions: 500 x 600 x 1600 mm (L x W x H)
Gas connection OUT: Tube 10 mm external diameter
Packaged dimensions: Consult us
Ozone production: 80 g O3/h
Ozone concentration: Max = 200 g/Nm3
Optimal: = 150 g/Nm3
Caudal de Oxígeno: 20 L/min.
