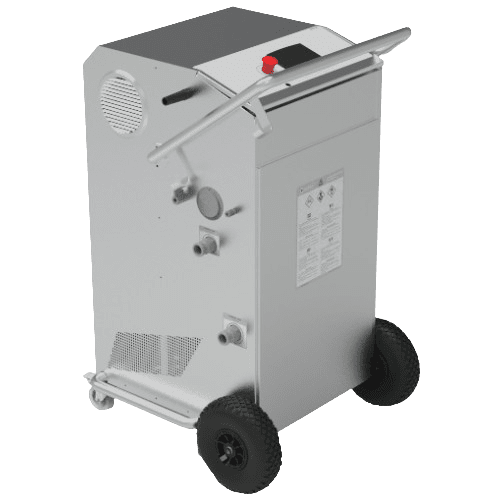

Professional mobile ozone generator for disinfection
Its touch-screen interface controls the process. This makes it easy for the user to get to grips with the process.
It is designed with quality components. Our ozone generator provides a regular and constant flow of ozone with a high concentration, whether in the air or in the water.
- Surface and floor disinfection
- Disinfection of tanks and reservoirs
- Disinfection of drums
- Disinfection of bottling lines
- Disinfection of vegetables and fruit
- Disinfection of agricultural soils
- Foliar treatment
- Disinfection of ventilation ducts
Examples of sectors of activity:
- Cellars
- Vineyards and wineries
- Fish markets and markets
- Slaughterhouses
- Food processing industries
- Cleaning professionals
- Farmers
- Bakeries
- Bottlers
- Ice manufacturers
Ozone generator technical specifications :
- Inlet water flow rate: 5 – 40 lpm
- Inlet water pressure: 2 – 6 bar
- Inlet water temperature: 5 – 30 ℃
- Power supply: 230V, 50Hz
- Power consumption: 1 800 W
- Concentrate. Maximum ozone gas output: 140 gO3/m3
- Maximum ozone gas output flow rate: 5 Lpm
- Maximum ozone gas outlet pressure: 0.2 bar
- Maximum recirculating water flow rate: 40 Lpm
- Overall size: 715 x 710 x 1150 mm
- Weight: 90kg
Equipment included:
- Oxygen concentrator
- Ozone generator
- Injection system
- Mixing system
- Redox meter
- Environmental ozone meter
- PLC with touch screen
- Stainless steel chassis with wheels
- Stainless steel gun with 3 nozzles
- Portable spectrophotometer for measuring ppm dissolved ozone
- 2 ozone destroying masks
- 4 metres of Teflon tube + sheath injector
