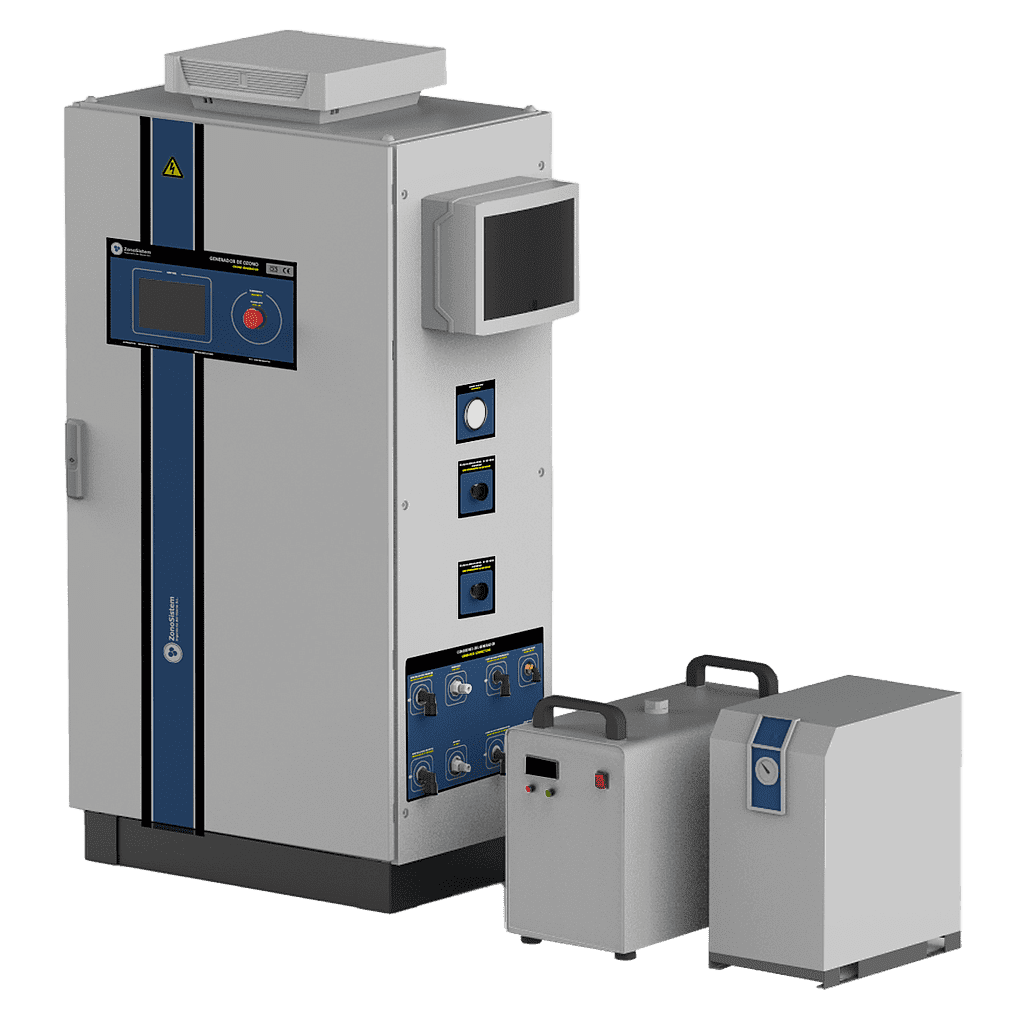

Industrial ozone generator for water treatment GRO120





The GRZO120 is a state-of-the-art industrial ozone generator designed to deliver high-performance ozone production for various water treatment applications. This compact system integrates advanced technologies to ensure efficient and reliable operation.



Key features



• High Ozone Output: Produces 120 grams of ozone per hour (120 g/h) at a concentration of 148 g/Nm³.
• Integrated Components: Includes a glycol-cooled ozone generation module, oil-free double-piston air compressor, air drying system, 95% purity oxygen concentrator, microfiltration system, and a water chiller with refrigerant liquid.
• Advanced Control System: Equipped with a 4.3-inch touch-screen PLC for intuitive operation, featuring PID control, alarm and maintenance management, data logging, and optional remote access via ModBus communication.
• Safety and Monitoring: Incorporates sensors for ozone amperage, compressed air pressure, oxygen pressure, temperature and flow, ozone leakage, and door opening, ensuring safe and monitored operations.
• Robust Construction: Built with high-quality components for durability and reliability, ready for immediate electrical connection and operation.



Technical specifications



• Gas Connection: Fitting for 10 mm external diameter tube.
• Compressor Air Flow: 20 liters per minute.
• Electrical Power: 3.2 kW.
• Power Supply: 400 V, 3P+N, 50 Hz.
• Operating Conditions:
  • Gas Service Pressure: 0.95 Bar.
  • Ambient Temperature: 5-35 ºC.
  • Room Humidity: <85%.
  • Air Source: Oxygen generated in situ by the integrated PSA unit.



Applications



The GRZO120-EPSF V5 is ideally suited for water purification and disinfection treatments across various sectors, including:



• Wastewater treatment plants (WWTP).
• Public water purification facilities (DWTP).
• Agricultural irrigation systems.
• Fish farms and aquariums.
• Lake and pond rehabilitation.
• Swimming pools.



By integrating the GRZO120 into your water treatment processes, you can achieve enhanced disinfection efficiency, improved water quality, and compliance with environmental standards. Its comprehensive design ensures seamless operation, making it a valuable asset for industrial and municipal water treatment facilities.
