Industrial ozone generator for water treatment 20g/h
Ozone generator to obtain an even concentration of ozone. Designed for disinfecting and sanitising water in tanks and pipe networks, process water or cooling towers…

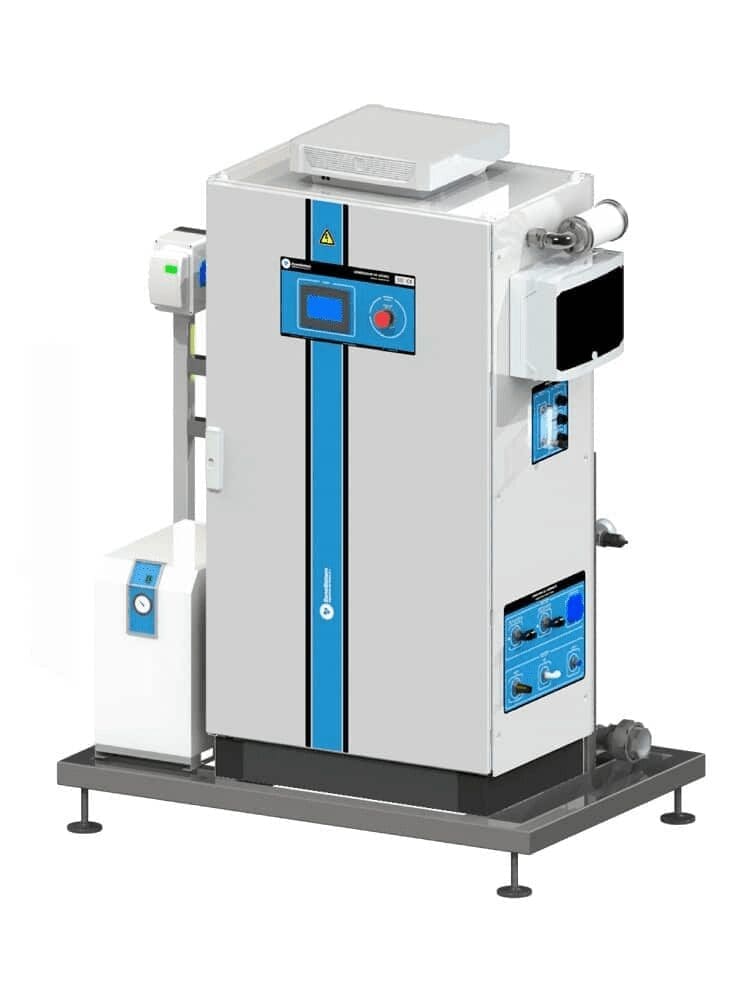

Design and installation of an industrial ozone generator for recirculation, cooled with glycol to work from an oxygen supply provided by PSA and equipped with an air compressor. The equipment produces 20 gO3/h of ozone. The concentration achieved is 65g O3/Nm3.
Some technical specifications
- Ozone production: 20 g O3/h
- Ozone concentration: Optimal 65 g O3/Nm3
- Power supply: 230V 50-60HZ
- Oxygen flow required: 5 lpm
- 90% oxygen purity
- Compact air-cooled ozone generator with high ozone concentration, air compressor and integrated oxygen concentrator.
Documentation included
- Safety manual
- User, installation and commissioning manual
- Maintenance manual
- Declaration of conformity
- Warranty certificate
- Compliance with biocidal regulations
- Quality test results
Certifications: CE, Biocide PT2, PT4, PT5, PT11
