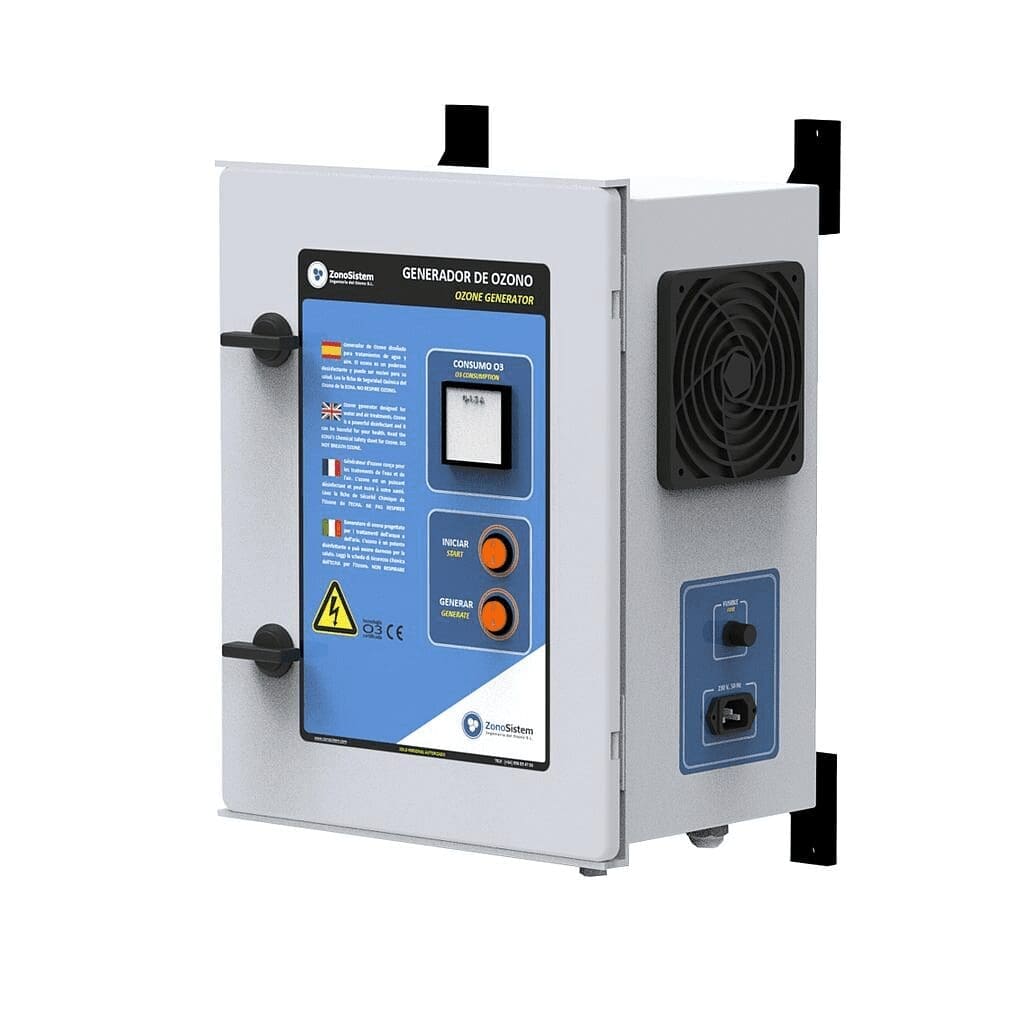

Ozone generator (2 go3/h)



Air-cooled, low concentration ozone generator with air compressor, air filter and silica gel dryer. With manual ignition control via ON/OFF switch and manual control of ozone output via potentiometer. With power indicator light and ozone ampere consumption indicator. With input and output sockets for 8 mm tube.

This generator is mainly used to treat air and rooms, with the idea of eliminating odours and sanitising the room itself and surfaces. Used in cold rooms, hotel extractor hoods and ventilation ducts. It is also used to disinfect small water tanks by bubbling in ozone.





Ozone Generator Equipment



Included Equipment



• Ozone Generation Nucleon: Air-cooled nucleon producing 2 g O3/h with a borosilicate dielectric.
• Electrical & Electronics: Includes a high-voltage transformer, EMI filter, and fuse holder.
• Compressed Air Components:
  • Pre-filter
  • Silica gel dryer
  • Air pump + filter
• Control System:
  • Power activation via manual ON/OFF switch
  • Ozone production power adjustment via manual potentiometer
• Sensors:
  • Ammeter
• Technical Valves:
  • Manually regulated air flow meter

Included in the Package



• 2 metres of 8 mm Teflon tubing
• 2 metres of 8 mm silicone tubing
• Silica gel clips + silica gel
• Fixation ear covers
• Electrical connection cable
• User manual

Technical Specifications



• Ozone Production: 2 g O3/h
• Ozone Concentration: 2 g O3/Nm3
• Air Compressor Flow Rate: 12 LPM
• Power Supply: 230V, 50-60Hz
• Power Consumption: 130W
• Gas Connection: 8 mm outer diameter IN/OUT tube
• Net Weight: 6 KG

Operating Conditions



• Room Requirements: Must be placed in a clean, dry area, free from grease and fumes.
• Room Humidity: <70%
• Ambient Temperature: 5-35ºC
• Air Source: The equipment operates with ambient air.
• Air Quality: The environment must be free of grease and have <150 ppm VOC.
• Operating Gas Pressure: 0-0.05 bar

Additional Information

This ozone generator is designed for reliable operation in controlled environments, ensuring high performance and safety in air purification applications.

This ozone generator is an efficient and compact solution designed for air purification, sterilisation, and industrial applications. It offers precise control, reliable performance, and easy installation, making it an ideal choice for various professional environments.

Certifications: CE, Biocide PT2, PT4, PT5, PT11
