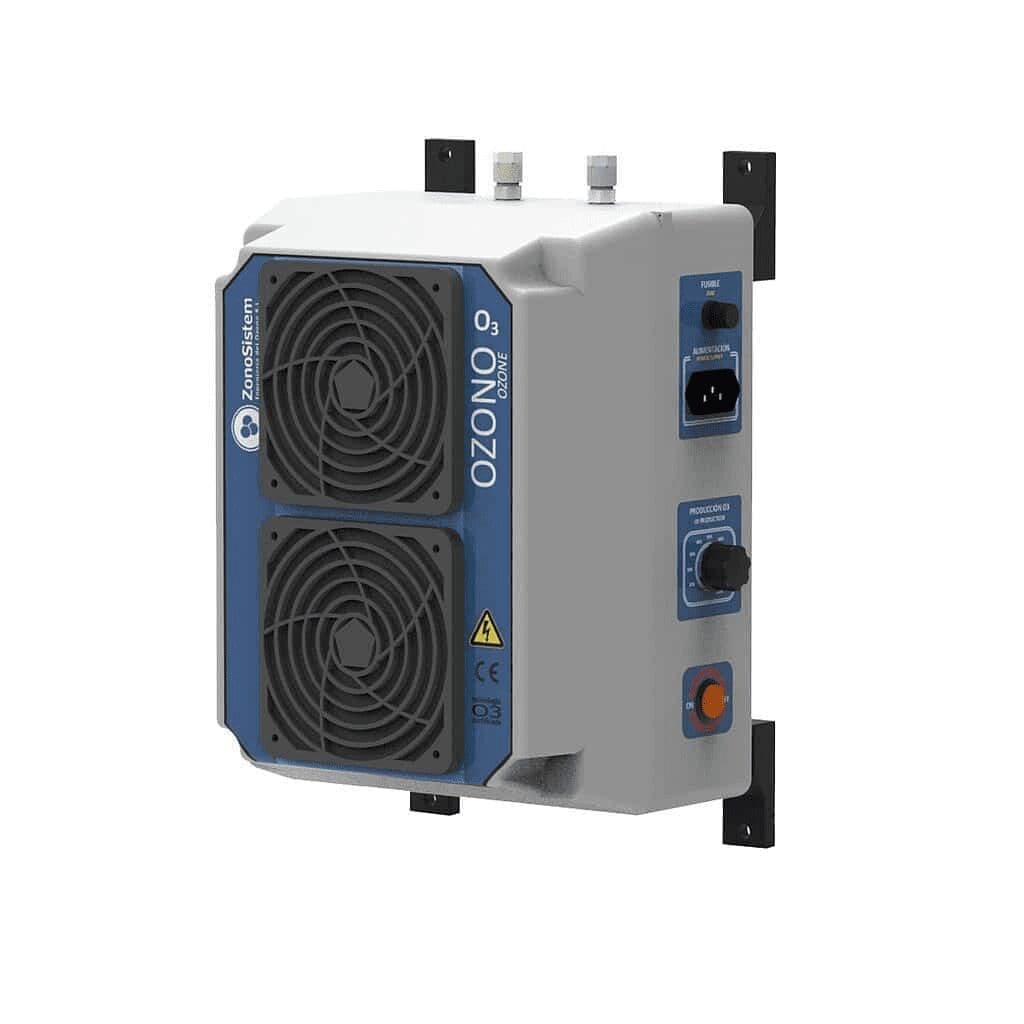

Ozone generator for cold storage (1 go3/h)



Air-cooled, low concentration ozone generator with air compressor, air filter and silica gel dryer. With manual ignition control via ON/OFF switch and manual control of ozone output via potentiometer. With power indicator light and ozone ampere consumption indicator. Inlet and outlet sockets for 8 mm tube.





Included Equipment



• Ozone Generation Nucleon: Air-cooled borosilicate dielectric nucleon with a capacity of 1g O3/h.
• Electrical and Electronic Components: Equipped with a high-voltage transformer, EMI filter, and fuse holder.
• Compressed Air System:
  • Pre-filter
  • Silica gel dryer
  • Air pump
  • Filter
• Control Mechanism:
  • Power on/off using a manual switch
  • Ozone production power regulation via manual potentiometer
• Sensors:
  • Ammeter
• Technical Valves:
  • Manually regulated air flowmeter
• Package Contents:
  • 2 metres of 8mm Teflon tubing
  • 2 metres of 8mm silicone tubing
  • Silica gel clips + silica gel
  • Mounting ear caps
  • Electrical connection cable
  • User manual

Technical Specifications



• Ozone Production: 1 gO3/h
• Ozone Concentration: 2.5 g O3/Nm³
• Compressor Airflow: 12 L/min
• Power Supply: 230 V, 50 – 60Hz
• Power Consumption: 80 W
• Gas Connection: 8mm outer diameter IN/OUT tubing
• Net Weight: 4 kg

Operating Conditions



• Room Requirements: Should be placed in a clean, dry environment, free from grease and smoke.
• Room Humidity: < 70%
• Ambient Temperature: 5 – 35ºC
• Air Source: Uses ambient air
• Air Quality: The environment should be free from grease and contain <150 ppm of VOCs.
• Gas Operating Pressure: 0 – 0.4 bar



This ozone generator is an efficient and compact solution designed for air purification, sterilisation, and industrial applications. It offers precise control, reliable performance, and easy installation, making it an ideal choice for various professional environments.

Certifications: CE, Biocide PT2, PT4, PT5, PT11
