Industrial ozone generator for water treatment GR1000

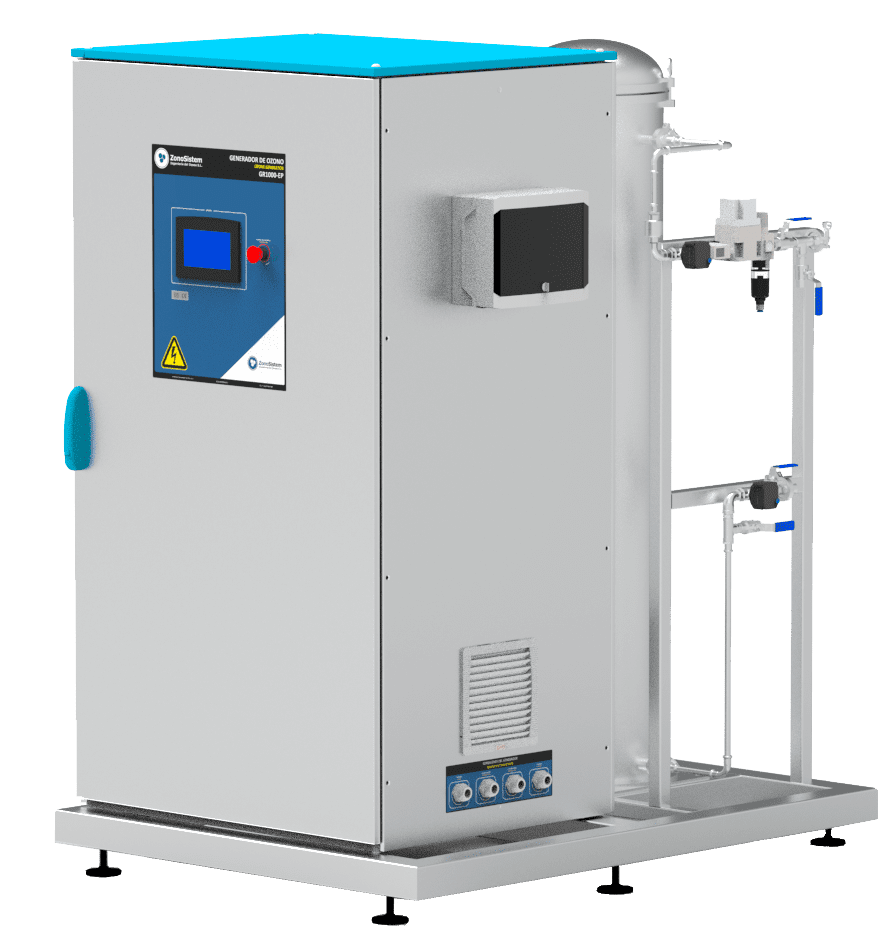

Introducing the GR1000-EP Industrial Ozone Generator —a state-of-the-art solution designed for high-efficiency water treatment applications. Engineered with precision and built to last, this generator delivers consistent ozone production, ensuring optimal performance for various industrial needs.
Key features
- High-Efficiency Ozone Production: Capable of generating 1 kg of ozone per hour at an optimal concentration of 148 g/Nm³, the GR1000-EP ensures effective and reliable ozone output.
- Robust Construction: Crafted from premium materials, including 316L stainless steel, Viton, and Teflon, this generator promises durability and resistance to corrosion, even in demanding environments.
- Advanced Control System: Equipped with a 7-inch touchscreen PLC V700, the GR1000-EP offers intuitive operation, recipe management, weekly scheduling, and comprehensive alarm and maintenance management.
- Comprehensive Monitoring: Integrated sensors monitor door status, air pressure, ozone flow rate, oxygen pressure, ozone amperage, cooling flow rate, ozone leaks, and virole temperature, ensuring safe and efficient operation.
- Flexible Oxygen Supply: Designed to operate with oxygen supplied by the client, sourced from either Liquid Oxygen (LOX) or Pressure Swing Adsorption (PSA) systems, providing adaptability to existing setups.
- Cooling Options: The system requires a cooling water supply, with options for chiller or heat exchanger integration to maintain optimal operating temperatures.
Technical specifications
- Ozone Production: 1,000 g O₃/h
- Optimal Ozone Concentration: 148 g/Nm³
- Air Compressor Flow Rate: 6.78 Nm³/h
- Cooling Capacity: Requires a cooling system with a capacity of at least 9 kW
- Power Supply: 400 V, 3-phase + Neutral, 50 Hz
- Power Consumption: 8.6 kW
- Gas Connections: DN25
- Cooling Connections: DN50
- Dimensions: 1,500 x 1,500 x 2,000 mm (Width x Depth x Height)
- Weight: Approximately 500 kg
Applications
The GR1000-EP is ideally suited for:
- Wastewater Treatment Plants (WWTP): Enhancing the purification and disinfection processes of wastewater.
- Drinking Water Treatment Plants (DWTP): Ensuring safe and clean potable water through effective ozonation.
- Agricultural Irrigation Systems: Improving water quality for irrigation, promoting healthier crop growth.
- Aquaculture and Aquariums: Maintaining optimal water conditions for aquatic life by reducing pathogens and organic contaminants.
- Lake and Pond Rehabilitation: Restoring natural water bodies by breaking down pollutants and enhancing water clarity.
- Swimming Pools: Providing a chemical-free alternative for pool water disinfection, ensuring a safer swimming environment.
Operational overview
Upon activation, the GR1000-EP opens its motorized oxygen inlet valve, allowing oxygen to flow into the system. This oxygen is directed to the ozone generation chamber, where a corona discharge transforms it into ozone. The integrated flowmeter enables precise adjustment of the desired ozone flow rate, ensuring consistent and efficient operation.
Safety and compliance
- CE Marking: The GR1000-EP complies with European safety, health, and environmental protection standards.
- Biocide Regulation Compliance: Adheres to biocide regulations PT2, PT4, PT5, and PT11, ensuring safe application in various industries.
Warranty and Support:
- Extended Warranty: Comes with a 2-year warranty, extendable indefinitely with a maintenance contract, providing peace of mind and long-term reliability.
- Comprehensive Documentation: Includes user manuals for safety, installation, commissioning, and maintenance, along with a declaration of conformity and factory quality test results.
Experience unparalleled efficiency and reliability with the GR1000-EP Industrial Ozone Generator—your solution for advanced water treatment applications.
