Ozone generator for atomisers, foggers and farming sprayers with tanks of up to 2500 litres

Professional ozone generator for foliar treatment

Description

Ozone generator for atomisers, foggers and agricultural sprayers with tanks of up to 2500 litres

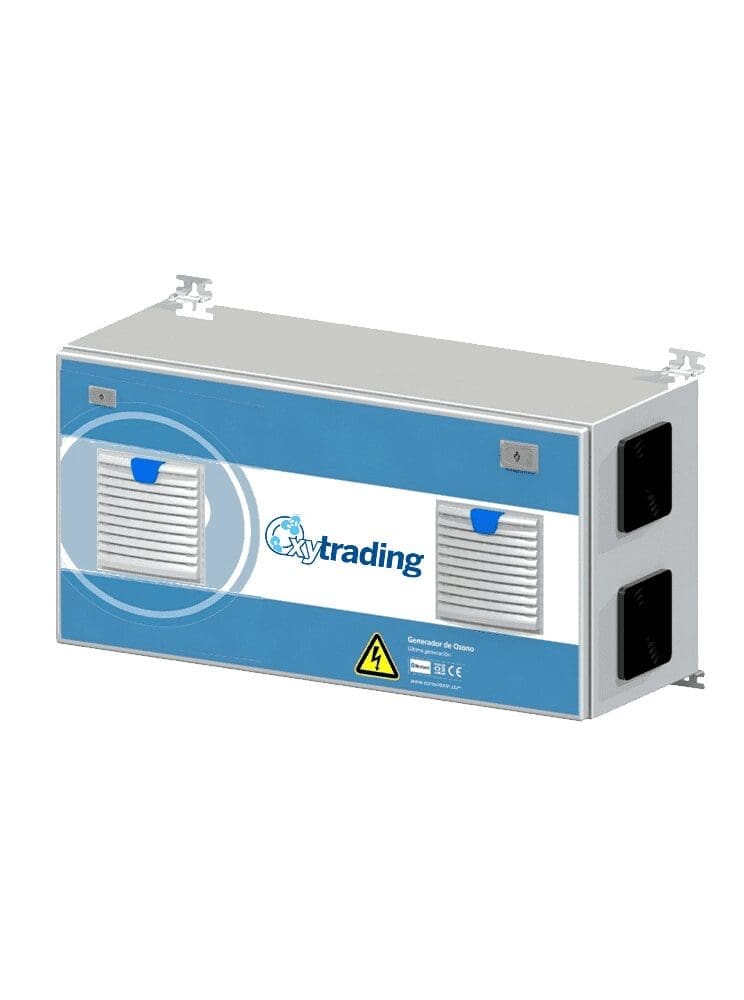

Professional ozone generator, with compressor, oxygen concentrator, dual ozone outlet and control via Mobile or Tablet with Bluetooth and Redox connection. Ozone production of 10 g O3/h, at a concentration of 70 g/Nm3. 12V DC, 280W.

This ozone generator can be used on atomisers, foggers and agricultural sprayers with tanks of up to 2,500 litres. For crop sanitation operations. Reduces disease, saves on plant protection products, speeds up healing and leaves no residue on plants, fruit or soil.

Ideal for injecting and maintaining high doses of ozone in an atomiser, nebuliser or sprayer.
Get high doses of dissolved ozone, thanks to its dual ozone outlet, which allows bubbling in the tank and direct in-line injection.
Install our APP on your Android mobile or tablet, and control and monitor the system from the tractor cab.
Ozone is generated on site. The equipment includes an oxygen concentrator.
Simply attach the equipment to the atomiser, connect it electrically to the battery and install the diffuser, injector and measuring line.
Ozone generator made from top-quality, durable materials.

Ozone generating nuclease A 10 g O3/h module with air-cooled borosilicate dielectric
Compressed air Includes pre-filter + compressor + condenser + water separator + particulate filter
Oxygen concentrator Activated alumina bi-column concentrator, 95% purity
Electronic control with 3.5’ touch screen. Ozone output control, redox potential graph and alarm manager
Communication Ability to communicate via Bluetooth with mobile phone or Android tablet with total control of the system thanks to the ZonoSistem APP.
Amperes sensors for Ozone production, Oxygen flow and pressure, Door opening and Redox control
Technical valves Mano-reducer and Solenoid valve for oxygen inlet, Solenoid valve for ozone bubble outlet, Solenoid valve for ozone injection outlet, Solenoid valve for measuring line, Non-return valve, Oxygen flow meter with manual regulation.
Included in the pack 10 metres of 8mm Teflon tube + 15 metres of corrugated tube + O.R.P. probe + Standard probe fluid + Electrical connection cable + Ceramic diffuser kit + O.R.P. probe holder kit + Injection kit + User manual
