Ozone generator for atomisers, foggers and farming sprayers with tanks more than 5000 litres
Ideal for injecting and maintaining high doses of ozone in an atomiser, nebuliser or sprayer
! Our range of ozonated water generators and water treatment systems is fitted as standard with an activated alumina bi-column oxygen concentrator to remove nitrogen from the air and not produce nitrogen oxides, for the safety of users and the environment. The oxygen produced and used is 95% pure !

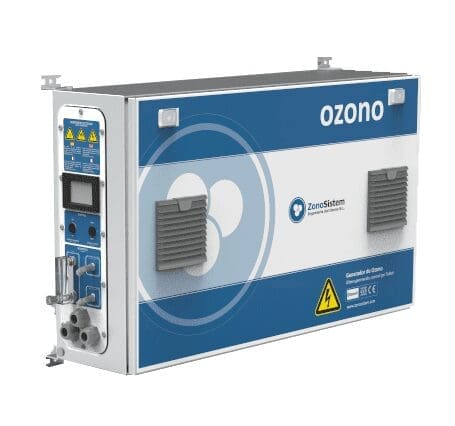

Ozone generator for foliar treatment - GZO40-D
GZO40-D: Innovation for Sustainable Agriculture
The GZO40-D is a professional all-in-one ozone generator, equipped with a built-in compressor, oxygen concentrator, and dual ozone outlets.
It is specifically designed for installation on agricultural atomisers, nebulisers, or sprayers with tank capacities of up to 5,000 litres.
Its main objective is to reduce the use of phytosanitary products while enhancing crop health.
Key Technical Specifications
- Ozone Production: 40 g O₃/h at an optimal concentration of 70 g/Nm³
- Power Supply: 12V DC with built-in inverter, power consumption 1250W
- Dual Output: For bubbling ozone into the tank and direct inline injection
- Smart Control: Android app with Bluetooth connection, enabling real-time control from the tractor cab
- Integrated Sensors: Flow, oxygen pressure, ozone amperage, Redox sensor, and door opening sensor
- High-grade Materials: 316L stainless steel, Viton, Teflon
- Dimensions: 600 x 250 x 1000 mm; Weight: 95 kg
Key Benefits for Agricultural Professionals
- Reduced Chemical Input: Ozone is generated on-site, eliminating the need for additional chemical products
- Proven Effectiveness: Powerful disinfection without residue on plants, fruit, or soil
- Easy Installation: Mounts directly to atomisers, with all accessories included
- Remote Control: Fully manageable via smartphone or Android tablet
- Regulatory Compliance: CE certified, Biocide PT2, PT4, PT5, PT11
- Extended Warranty: 2 years, with optional extension through maintenance contract
Package Contents
- Ozone generation module (40 g/h)
- Compressor with pre-filter, condenser, water separator, and particle filter
- Twin-column oxygen concentrator (95% purity)
- 3.5” touchscreen control panel
- 10 m Teflon tube (8 mm), 15 m corrugated tubing
- Redox sensor with calibration fluid
- Ceramic diffuser kit, injection kit, Redox probe holder kit
- Electrical connection cable
- User, safety, and maintenance manuals
Ideal for Modern Farming Operations
The GZO40-D is perfectly suited to medium to large-scale farms aiming to adopt sustainable practices and reduce chemical dependency.
Its automated system and remote control capability provide flexibility and increased efficiency in crop management.
