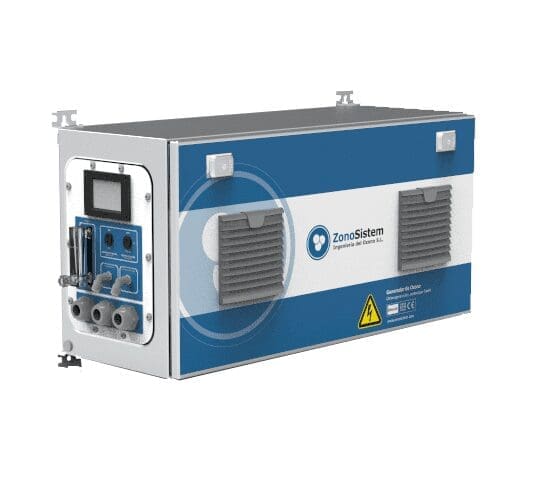

Ozone generator for atomisers, foggers and agricultural sprayers

FARMING

Ozone generator for atomisers, foggers and farming sprayers with tanks of up to 5000 litres

Professional ozone generator, using bottled oxygen or PSA, with dual ozone output for foliar treatment

Description

Ozone generator for atomisers, foggers and farming sprayers with tanks of up to 5000 litres

Professional ozone generator, working with bottled oxygen or PSA, with dual ozone output, advanced control from Mobile or Tablet with Bluetooth connection and Redox control. Ozone production of 20 gO3/h, at a concentration of 70 g/Nm3. 12V DC, 200W.

This ozone generator can be used on atomisers, foggers and agricultural sprayers with tanks of up to 5,000 litres. For crop sanitation operations. Reduces disease, saves on plant protection products, speeds up healing and leaves no residue on plants, fruit or soil.

Ideal for injecting and maintaining high doses of ozone in an atomiser, nebuliser or sprayer.
Get high doses of dissolved ozone, thanks to its dual ozone outlet, which allows bubbling in the tank and direct in-line injection.
Install our APP on your Android mobile or tablet, and control and monitor the system from the tractor cab.
Ozone is generated on site. The equipment includes an oxygen concentrator.
Simply attach the equipment to the atomiser, connect it electrically to the battery and install the diffuser, injector and measuring line.
Ozone generator made from top-quality, durable materials.

Ozone generating nuclease A 20 g O3/h module with air-cooled borosilicate dielectric
Compressed air Includes pre-filter + compressor + condenser + water separator + particulate filter
Oxygen concentrator Activated alumina bi-column concentrator, 95% purity
Electronic control with 3.5’ touch screen. Ozone output control, redox potential graph and alarm manager
Communication Ability to communicate via Bluetooth with mobile phone or Android tablet with total control of the system thanks to the ZonoSistem APP.
Amperes sensors for Ozone production, Oxygen flow and pressure, Door opening and Redox control
Technical valves Mano-reducer and Solenoid valve for oxygen inlet, Solenoid valve for ozone bubble outlet, Solenoid valve for ozone injection outlet, Solenoid valve for measuring line, Non-return valve, Oxygen flow meter with manual regulation.
Included in the pack 10 metres of 8mm Teflon tube + 15 metres of corrugated tube + O.R.P. probe + Standard probe fluid + Electrical connection cable + Ceramic diffuser kit + O.R.P. probe holder kit + Injection kit + User manual

Technical specifications of ozone generator

Ozone generating nuclease: A 20 g O3/h module with air-cooled borosilicate dielectric
Compressed air: Equipment does not include compressors. Oxygen is supplied by the customer.
Oxygen concentrator: Oxygen must be supplied by the customer, either from a cylinder or a PSA. The kit does not include the PSA.
Electronic control with 3.5’ touch screen. Ozone power regulation, Redox graphs and alarm manager.
Communication: Ability to communicate via Bluetooth with Android Mobile or Tablet, with total control of the system, via the ZonoSistem application.
Sensors Ozone amperes, oxygen flow and pressure, door opening and ORP control
Technical valves: Pressure regulator and oxygen inlet solenoid valve.
Bullage – ozone outlet solenoid valve.
Injection – ozone outlet solenoid valve.
Measuring line solenoid valve, Non-return valve, Manually regulated oxygen flow meter.
Included in the pack 10 metres of 8mm Teflon Tube + 2 metres of 10mm Polyurethane Tube + 15 metres of corrugated tube + O.R.P. Probe + Standard Liquid Probe + Electrical Connection Cable + Ceramic Diffuser Kit + O.R.P. Probe Holder Kit + Injection Kit + User Manual
Ozone concentration: Maximum = 100g/Nm3
Optimal: = 65g/Nm3
Compressor air flow: Maximum = 7 L/min
Optimal: = 5 Lpm
Power supply 12V DC – Integrated inverter
Electrical power: 200 W
Gas connection: IN Oxygen/OUT Bullage/OUT Injection with 8 mm O.D. tube
Dimensions: 800 x 400 x 300 mm (width x depth x height)
Packaged dimensions: 800 x 1200 x 600 mm (width x depth x height)
Net weight: 51 Kg
