HIDRO V 84.530 O3 recirculation unit
! Our range of ozonated water generators and water treatment systems is fitted as standard with an activated alumina bi-column oxygen concentrator to remove nitrogen from the air and not produce nitrogen oxides, for the safety of users and the environment. The oxygen produced and used is 95% pure !

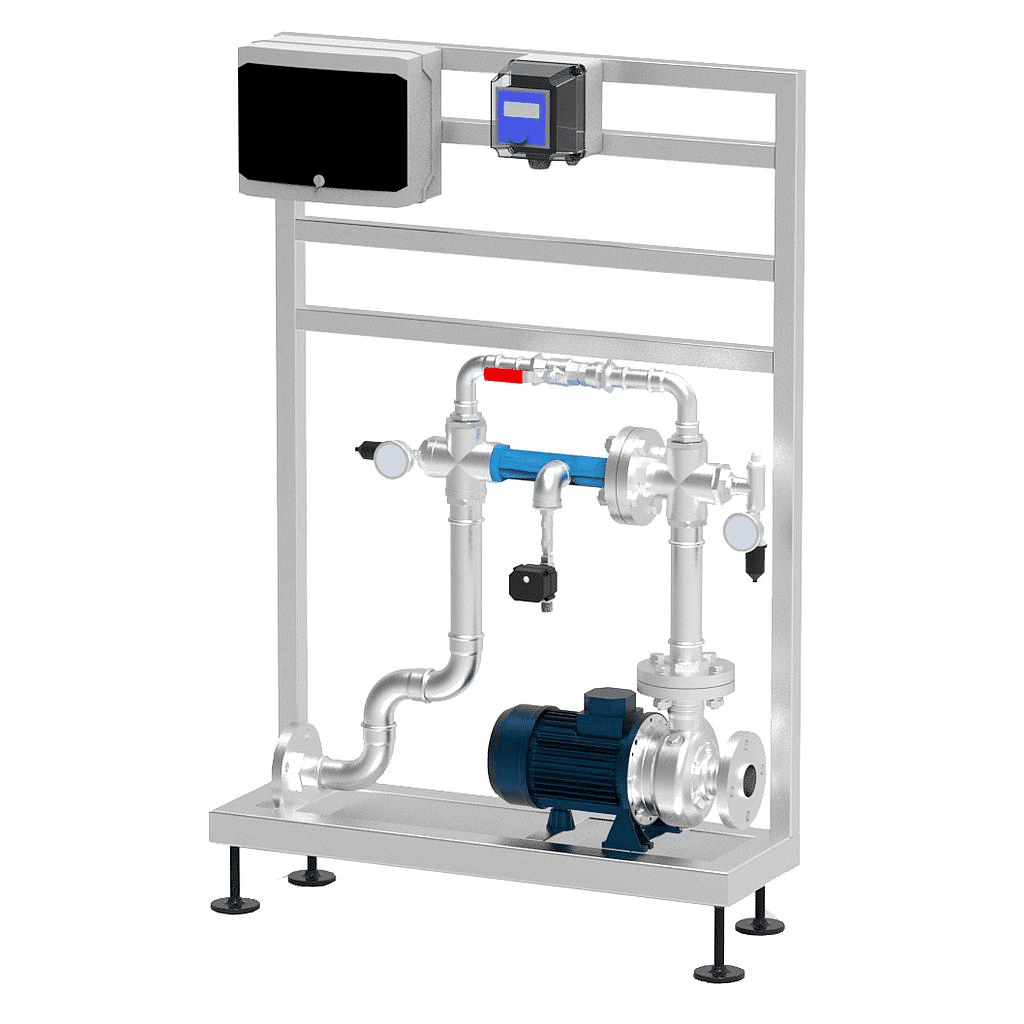

HIDRO V 84.530 Ozone Recirculation Unit
The HIDRO V 84.530 is a state-of-the-art recirculation system designed to optimize ozone dilution in water tanks. Built for reliability and performance, it combines powerful engineering with advanced safety features to ensure consistent results in demanding applications.
Why Choose the HIDRO V 84.530?
-
Maximum Efficiency – Delivers superior ozone dilution through an integrated recirculation and injection system, featuring a high-capacity venturi and booster pump.
-
Safety First – Equipped with multiple sensors, automated valves, and a stainless-steel check valve to guarantee safe and controlled operation.
-
Certified Compliance – CE-certified and fully compliant with biocidal regulations and ISO standards for peace of mind and operational credibility.
Key Features
-
Performance: 42 m³/h recirculation flow at 1.5 bar, with up to 100 l/min suction capacity.
-
Robust Design: Stainless steel skid structure and hydraulic components for maximum durability.
-
Smart Integration: Electrical protection panel with pump circuit breaker and ready-to-connect peripheral terminals.
-
Compact & Practical: 970 × 300 × 1400 mm (L × W × H), only 130 kg, easy to install and maintain.
Technical Specifications
-
Recirculation flow rate: 42 m³/h at 1.5 bar
-
Maximum suction flow rate: 100 l/min
-
Hydraulic connections: Inlet/Outlet = 2"
-
Hydraulic pipes: Stainless steel, 54 mm
-
Design pressure: 0.5 bar
-
Gas connection: Tube outer diameter 10 mm
-
Electrical power: 3 KW
-
Power supply: 400V, 3P+N, 50Hz
-
Dimensions: 970 x 300 x 1400 mm (L x W x H)
-
Net weight: 130 kg
Included Equipment
-
3 KW stainless steel pump
-
2" PVDF venturi
-
Electrical protection panel with pump circuit breaker and terminals for peripheral connections
-
Sensors: visual pressure gauge, minimum and maximum pressure switch
-
Technical valves: motorized valve, 316L stainless steel check valve, manual regulation bypass
-
Stainless steel 304 skid frame
The HIDRO V 84.530 is the ideal solution for industries and facilities requiring efficient, safe, and certified ozone dilution technology.
Why Choose Oxytrading Ltd?
With a deep focus on ozone technology and industrial safety, Oxytrading delivers high-performance solutions backed by expertise and reliability. Our accessories are designed to work seamlessly with your ozone systems for maximum efficiency and peace of mind.
