Refrigeration system for industrial ozone generator 2000G
CHILLER RE5000 designed for an ozone generator producing up to 2 kgO3/h
! Our range of ozonated water generators and water treatment systems is fitted as standard with an activated alumina bi-column oxygen concentrator to remove nitrogen from the air and not produce nitrogen oxides, for the safety of users and the environment. The oxygen produced and used is 95% pure !

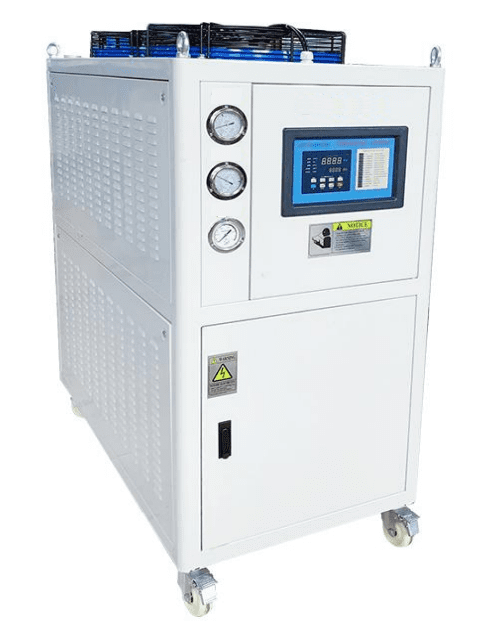

CHILLER model RE2000 for ozone generator
Industrial refrigeration system for ozone generators up to 2 kg O3/h. With 3 PH, 380 V, 50 Hz and 8.4 kW cooling capacity.
Designed to maintain the appropriate and necessary temperature for your ozone generator up to 2 kg O3/h.
Technical specifications
- Temperature control: accuracy of 1 ºC.
- Cooling capacity: 20 kW.
- Maximum power consumption: 8.4 kW.
- Recirculation water flow rate 9 m3/h.
- Maximum recirculation pump pressure 3.5 bar.
- Length x Width x Height: 1280 x 720 x 1380 mm.
- Weight: 33500kg.
- Hose connection: 1 1/2". DN40
- Tank volume: 200L.
- LCD screen.
- CE marking.
Working and environmental requirements
- Maximum ambient temperature 5 to 35°C.
- Do not block the vents.
- Ventilate the room during operation.
