OXYGEN GENERATOR
Oxygen generator PSA for industrial ozone generator

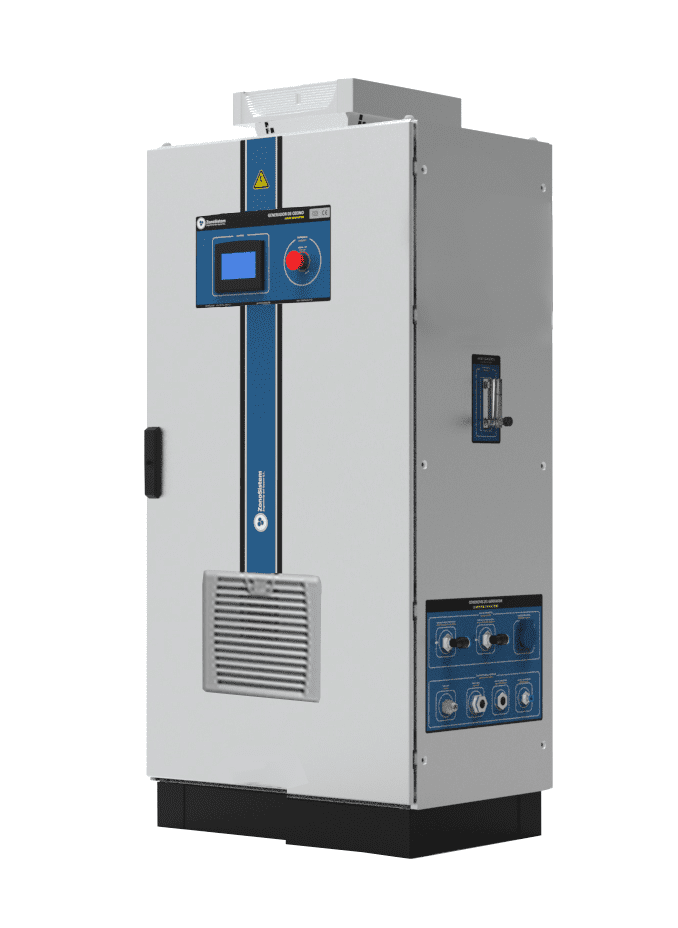

Oxygen generator with compressor, air treatment unit and filtration unit, with a flow rate of 10 lpm at an oxygen purity >90%
! Our range of ozonated water generators and water treatment systems is fitted as standard with an activated alumina bi-column oxygen concentrator to remove nitrogen from the air and not produce nitrogen oxides, for the safety of users and the environment. The oxygen produced and used is 95% pure !
Oxygen generator for industrial ozone generator
PSA oxygen production system . Manufactured with a twin-column concentrator, compressor, flow meter, air treatment unit, filtration unit, PLC control and touch screen. Allows data logging and remote access. Manufactured with high-quality components, ready to be electrically connected and ready to operate.
| Control | By PLC 4.3" touch, with planner, alarm manager, maintenance, data logging. |
| Condensate Outlet | OUT 8 mm diameter |
| Communication | Wired Remote On, Status Relays (Started, Fault). Allows ModBus communication. |
| Oxygen concentrator | Activated alumina twin-column concentrator, 95% purity |
| Compressed air | Pre-filters + Compressors + Filtration unit + Air treatment unit + Refrigeration dryer |
| Sensors | Ampere draw, compressed air pressure, pressure, temperature, and oxygen flow. Door opening. |
| Technical valves | Motorized oxygen outlet valve, oxygen flowmeter with manual regulation. |
| Outlet pressure | 1 bar |
| Compressor air flow | 30 lpm |
| Dimensions | 600 x 500 x 1400 mm (Width x Depth x Height) |
| Power supply | 230 V, 50 Hz |
| Electrical power | 2,5 kW |
| Gas connection | OUT Thread: 1/4", Tube: 10 mm |
| Packaged dimensions | Consult |
