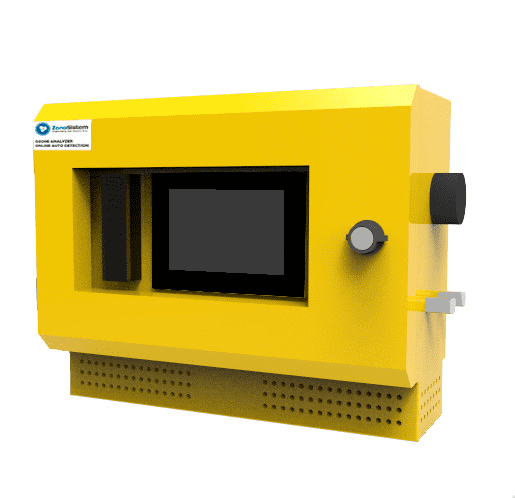

Industrial ozone concentration meter cabinet
Ozone gas concentration meter with a range of 0-200 g O3/Nm3
! Our range of ozonated water generators and water treatment systems is fitted as standard with an activated alumina bi-column oxygen concentrator to remove nitrogen from the air and not produce nitrogen oxides, for the safety of users and the environment. The oxygen produced and used is 95% pure !
Ozone concentration control with cabinet
Ozone gas concentration meter, 0-200 g O3/Nm3, with ozone destructor, 4-20 mA analog output, and RS485 communication. Power supply: 110-220 V AC, 50-60 Hz. Power supply: 230 V, 50-60 Hz, 30 W. Measurement technology based on ultraviolet absorption, with a wavelength of 253.7 nm. It compensates for pressure and can zero without needing to be at zero.
Technical specifications
- LCD screen.
- Measurement range from 0 to 200 g O3/Nm3.
- Screen resolution: 0.1 g O3/Nm3.
- Measurement flow rate: 0.5 L ± 0.2 L/min.
- Input pressure: 1 bar.
- Response time: Signal captured in 0.03 s and displayed on the screen in 0.3 s.
- Measurement connection diameter: 6 mm outside, 4 mm inside.
- RS-485 communication.
- Proportional analog output 4-20mA.
- Size 160 x 260 x 300 mm.
- Weight 8.5 kg.
- Operating temperature: -20ºC / 50℃
- Sensor service life: 30,000 - 50,000 hours
- 110-220 V
- CE marking.
For use with high-production industrial ozone generators, in research, or in processes that require high precision and control of the ozone concentration applied in a given process.
