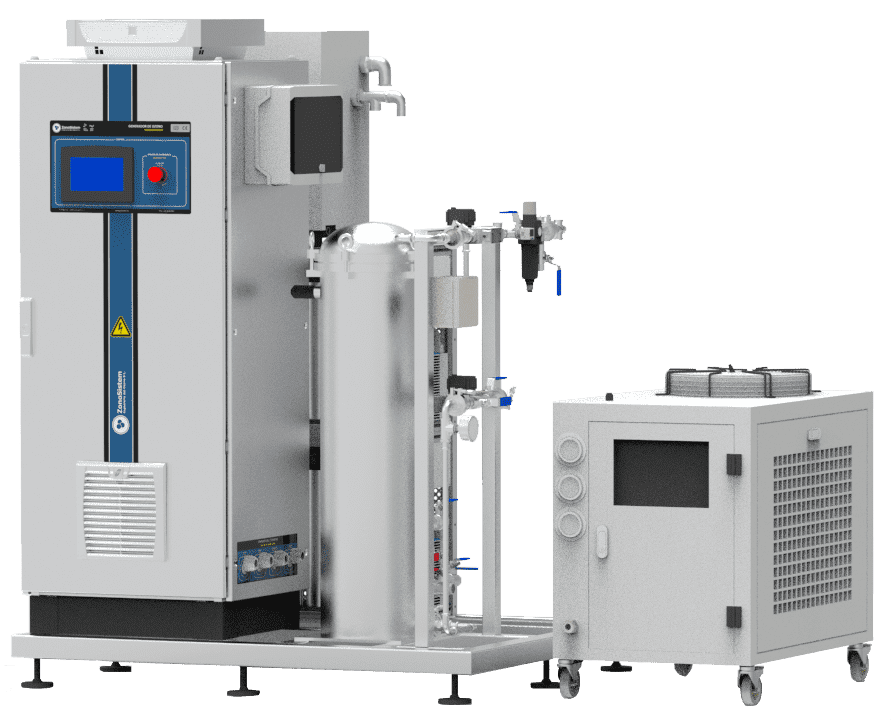

The GRZO500-EPSF is a state-of-the-art industrial ozone generator
INDUSTRIAL
WATER TREATMENT

Industrial ozone generator GRZO500-EPSF

This compact, glycol-cooled unit delivers a high ozone output of 500 g O₃/h at an optimal concentration of 148 g/Nm³, making it ideal for demanding water treatment applications.



You would like to set up a solution with an ozone generator for water or air treatment. Contact us.

Category:

! Our range of ozonated water generators and water treatment systems is fitted as standard with an activated alumina bi-column oxygen concentrator to remove nitrogen from the air and not produce nitrogen oxides, for the safety of users and the environment. The oxygen produced and used is 95% pure !

Industrial ozone generator GRZO500-ESPF



This compact, glycol-cooled unit delivers a high ozone output of 500 g O₃/h at an optimal concentration of 148 g/Nm³, making it ideal for demanding water treatment applications.

Key Features



  • Integrated Systems: Includes a pre-filter, oil-free air compressor, dryer, and PSA oxygen concentrator achieving 95% purity with a -30°C dew point.

  • Advanced Refrigeration: Equipped with a chiller and 25L of prepared glycol for efficient cooling.

  • Smart Control: Managed by a PLC V700 with a 7" touchscreen, featuring a recipe manager, weekly scheduler, alarm, and maintenance manager.

  • Comprehensive Monitoring: Sensors monitor ozone amperage, compressed air pressure, oxygen pressure and flow, refrigeration flow and temperature, ozone leaks, and door status.

  • Robust Construction: Built with high-quality components for durability and reliability.

  • Remote Access: Offers ModBus communication and remote access via an included VPN router.

Included Accessories



  • Coolant Bottle

  • Instruction Manual

  • Safety Manual

  • Maintenance Manual

  • Declaration of Conformity

  • Warranty Certificate

  • Compliance with Biocidal Regulations

  • Quality Test Results



Technical specifications



  • Ozone Production: 500 g O₃/h

  • Ozone Concentration: Max 200 g/Nm³; Optimal 148 g/Nm³

  • Air/Oxygen Flow: 60 L/min

  • Power Supply: 400V, 3P+N, 50-60 Hz

  • Electrical Power:

    • Ozone Generator: 5.15 kW

    • PSA Unit: 5.4 kW

    • Chiller: 2.4 kW

  • Dimensions: 1400 x 1400 x 1850 mm (L x W x H)

  • Weight: 500 kg

  • Gas Connection: 1/2" Female Thread with 10 mm Tube Fitting



Certifications & compliance





  • CE Marking

  • Biocide Compliance: PT2, PT4, PT5, PT11

  • ISO Certifications: 9001 and 14001
