Industrial ozone generator GR500-EP

The GR500-EP is a robust, water-cooled ozone generator engineered for continuous operations.

Category: Industrial ozone generator for Water treatment

! Our range of ozonated water generators and water treatment systems is fitted as standard with an activated alumina bi-column oxygen concentrator to remove nitrogen from the air and not produce nitrogen oxides, for the safety of users and the environment. The oxygen produced and used is 95% pure !

Description

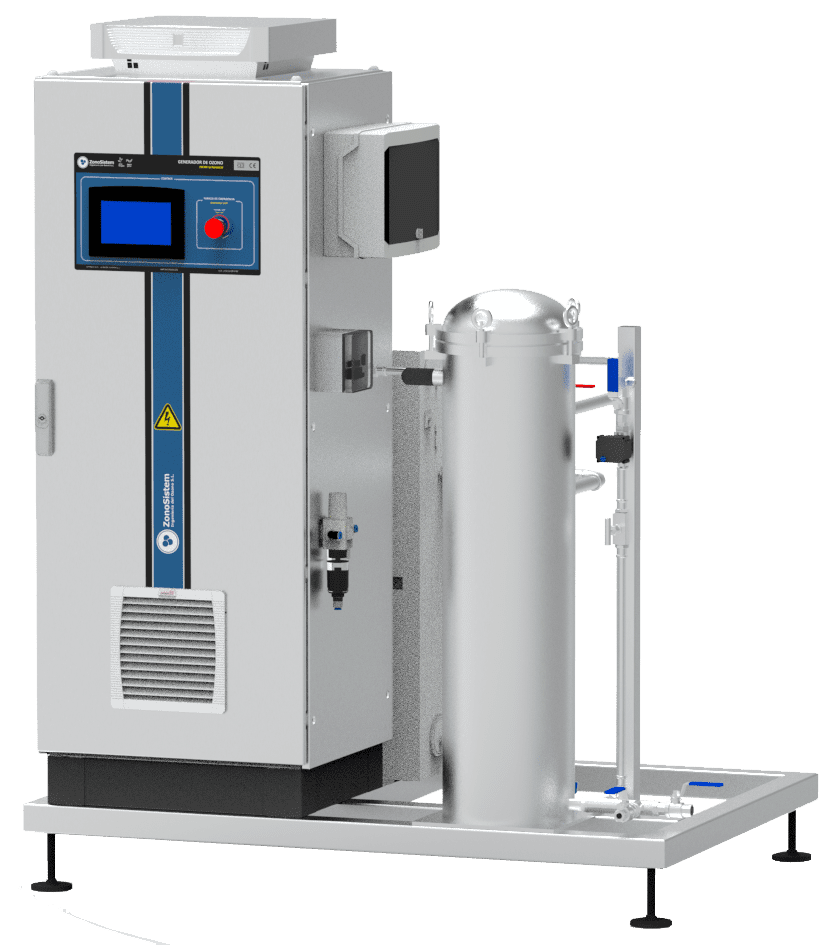

Industrial ozone generator GR500-EP

The GR500-EP is a robust, water-cooled ozone generator engineered for continuous operation. It utilizes high-frequency corona discharge technology with a borosilicate dielectric core to produce ozone from an external oxygen supply, either via liquid oxygen (LOX) or a Pressure Swing Adsorption (PSA) system. This design ensures high ozone concentrations with optimal energy efficiency.

The GR500-EP is ideally suited for: Wastewater treatment plants (WWTP), drinking water treatment facilities (DWTP), agricultural irrigation systems, aquaculture and fish farming, aquariums and recreational water bodies, lake and reservoir rehabilitation, swimming pool water treatment...

Key Features

Ozone Production: Up to 500 g O₃/h at an optimal concentration of 148 g/Nm³.
Control System: Integrated PLC V700 with a 7" touchscreen, featuring recipe management, weekly scheduling, and maintenance alerts.
Monitoring & Safety: Equipped with sensors for ozone amperage, oxygen pressure and flow, cooling flow, ozone leaks, and door status.
Communication: Supports ModBus protocol and offers optional VPN router for remote access and full control.
Construction: Built with high-quality materials, including stainless steel 316L, Viton, and Teflon, ensuring durability and resistance to corrosion.

Included Accessories

Ozone generation core with 500 g O₃/h capacity.
Spare borosilicate dielectrics.
User manual and comprehensive documentation.
Note: Oxygen supply (LOX or PSA) and refrigeration unit are not included and should be procured separately.

Technical specifications

Power Supply: 400V, 3P+N, 50Hz.
Electrical Consumption: 3.5 kW.
Gas Connections: IN: Ø10 mm tube; OUT: ½" female thread with Ø10 mm tube fitting.
Cooling Requirements: Requires 50 L/min of water at 1 bar pressure and 15–22°C.
Dimensions (W x D x H): 1600 x 1300 x 1800 mm.
Weight: Information available upon request.
