Ozone air and ethylene treatment unit 6000 m3

Ozone air and ethylene treatment unit. Elimination of environmental pathogens.

Description

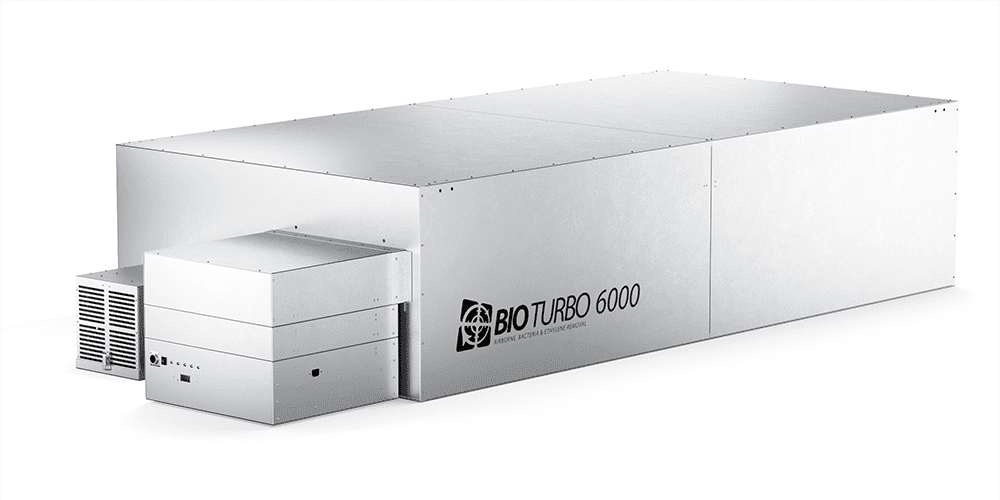

Ozone air and ethylene treatment unit

Model BIO TURBO 6000

For preserving fruit and vegetables in post-harvest storage or cold rooms. Minimizes losses by reducing and eliminating ethylene and pathogens (bacteria, viruses, spores, molds and fungi). Patented technology. Treatment of up to 6000 m3.

Ideal for reducing the ethylene generated by fruit, vegetables and other vegetation.
Efficiency up to 99.5%.
Easy to install.
Stainless steel and aluminum ozone generation chamber.
Ozone is generated inside the chamber, with no risk to bystanders. Totally safe.
Easy change of ozone plates and filters
Remote on/off control.
LED display for diagnostics.

Technology description

STAGE 1: AIR FILTER The
air filter removes dust and visible particles from the air.

STAGE 2: CELL DISRUPTOR
An antimicrobial chemical is applied to the surface of a disruptor with unique properties. It works by damaging the outer membrane of the cells that make up these airborne pathogens. With an efficiency rate of over 99.5%, this process stops the normal development of these pathogens, thus destroying the cells.

STAGE 3: OZONE CHAMBER
This chamber uses the favorable properties of ozone to eliminate ethylene. The ozone is safely stored in this space and is not dispersed into the storage area.

STAGE 4: BIO CLEAN MODE
In the final stage, a catalyst is used to change the ozone into clean oxygen. This creates a reaction that breaks down the ozone molecule. From here, the clean oxygen is released back into the atmosphere.

Product details

Maximum volume: 6000 m3 per 24 hours
Air flow: 150 CFM
Power supply: 100-240 V
Power consumption: 240W
Circuit breaker: 15A
Generating chamber dimensions: 25 * 30 * 25 cm
Catalytic converter dimensions: 30 * 48 * 40 cm
Reaction chamber dimensions: 122 * 244 * 61 cm
Weight : 60 kg
Noise level: 72 dB
Generating chamber materials: Aluminum
Catalytic converter materials: Aluminum
Generator materials: Stainless steel
Filter change: Air filter (1) every 12 months, ozone plate (4) every 12 months

Applications

Industrial :

Cold rooms for storing fresh fruits and vegetables / cut flowers
Spaces / halls for growing seedlings and planting material, bulbs, etc.
Transit and/or distribution centers for fresh fruits and vegetables/cut flowers
Fruit research stations
Vegetable research and production stations
Cold rooms for storing fresh food
Sorting / packaging / marking and delivery areas for fresh fruits and vegetables / cut flowers
Fresh fruit and vegetable processing/packaging areas
Fruit/vegetable/mushroom canneries
Cold rooms for storing fresh mushrooms
Cold rooms for storing snails
Cold rooms for storing fresh fruits and vegetables in hotels, restaurants, canteens, yachts, cruise ships, oil platforms
Dining areas, fresh fruit and vegetable islands
Cold rooms for storing grapes
Grape processing/packaging areas
Barrel cellars
Cold rooms for storing fresh meat
Fresh meat processing rooms
Slaughter
Refrigerated trucks for transporting fresh fruits and vegetables / cut flowers, seedlings / bulbs
Static refrigerated containers for storing fresh fruits and vegetables / cut flowers
Chip factories / bakeries / confectioneries / patisseries
Leather / leather goods / footwear factories
Water, juice, dairy, beer bottling plants
