Control system for ethylene, bacteria, mould and fungi

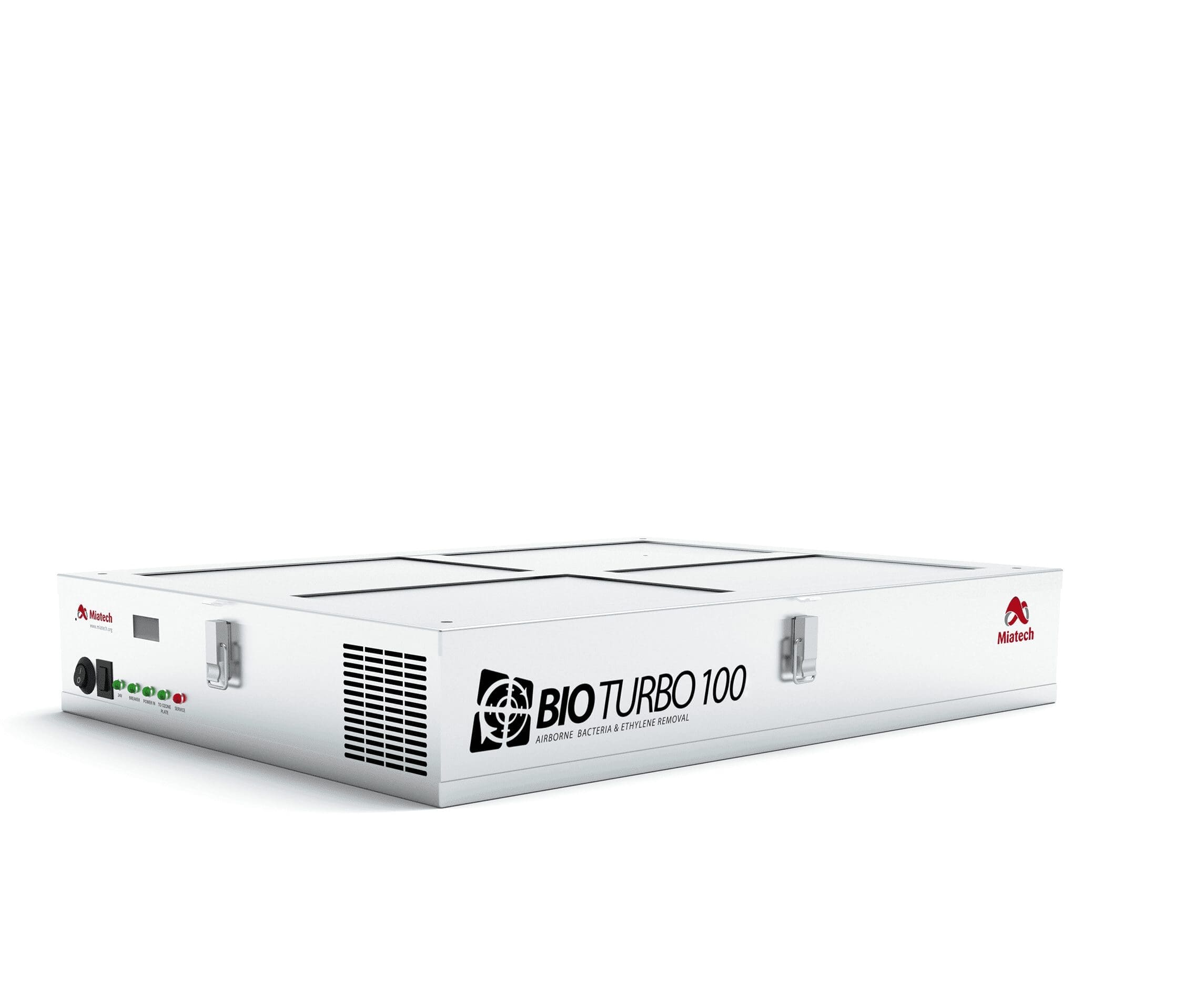

Ozone air purifier up to 100 m3

For air treatment and purification. Destroys all pathogens (bacteria, viruses, spores, mould and fungi). Patented technology. Treats up to 100 m3.

BIO Turbo does not just filter the surrounding air, it eliminates it permanently, unlike HEPA filters.

Category: Air purifier

Description

Air purifier with ozone system for volumes of 100 m3

General description

Up to 99.5% effective.
Easy to install.
Ozone generation chamber made of stainless steel and aluminium.
Ozone is generated inside the chamber, posing no risk to people in the vicinity. Completely safe.
Easy replacement of ozone plates and filters.
Remote on/off control.
LED display for diagnostics.

Intended for use in the following locations

Kindergartens/schools/indoor children's play areas
Conference rooms/waiting rooms/classrooms/seminars/training courses
Event spaces
Hotels
Restaurants
Airports
Reception and/or transit areas
Office buildings
Residential areas
Shops / Shopping centres / Shopping malls
Spa centres
Gyms/fitness centres
Museums
Medical practices
Public transport

Technology description

STAGE 1: AIR FILTER The
air filter removes dust and visible particles from the air.

STAGE 2: CELL DISRUPTOR
An antimicrobial chemical is applied to the surface of a disruptor with unique properties. It works by damaging the outer membrane of the cells that make up these airborne pathogens. With an efficiency rate of over 99.5%, this process stops the normal development of these pathogens, thus destroying the cells.

STAGE 3: OZONE CHAMBER
This chamber uses the favorable properties of ozone to eliminate ethylene. The ozone is safely stored in this space and is not dispersed into the storage area.

STAGE 4: BIO CLEAN MODE
In the final stage, a catalyst is used to change the ozone into clean oxygen. This creates a reaction that breaks down the ozone molecule. From here, the clean oxygen is released back into the atmosphere.

Product details

Maximum volume: 100 m3 per 24 hours
Air flow: 3 CFM
Power supply: 100-240 V
Power consumption: 30W
Circuit breaker: 5A
Overall dimensions: 10 * 45 * 60 cm
Weight : 11 kg
Noise level: 51 dB
Generating chamber materials: Aluminum
Catalytic converter materials: Aluminum
Generator materials: Stainless steel
Warranty: 12 months
Filter change: Air filter (1) every 12 months, ozone plate (1) every 12 months

Applications

Industrial :

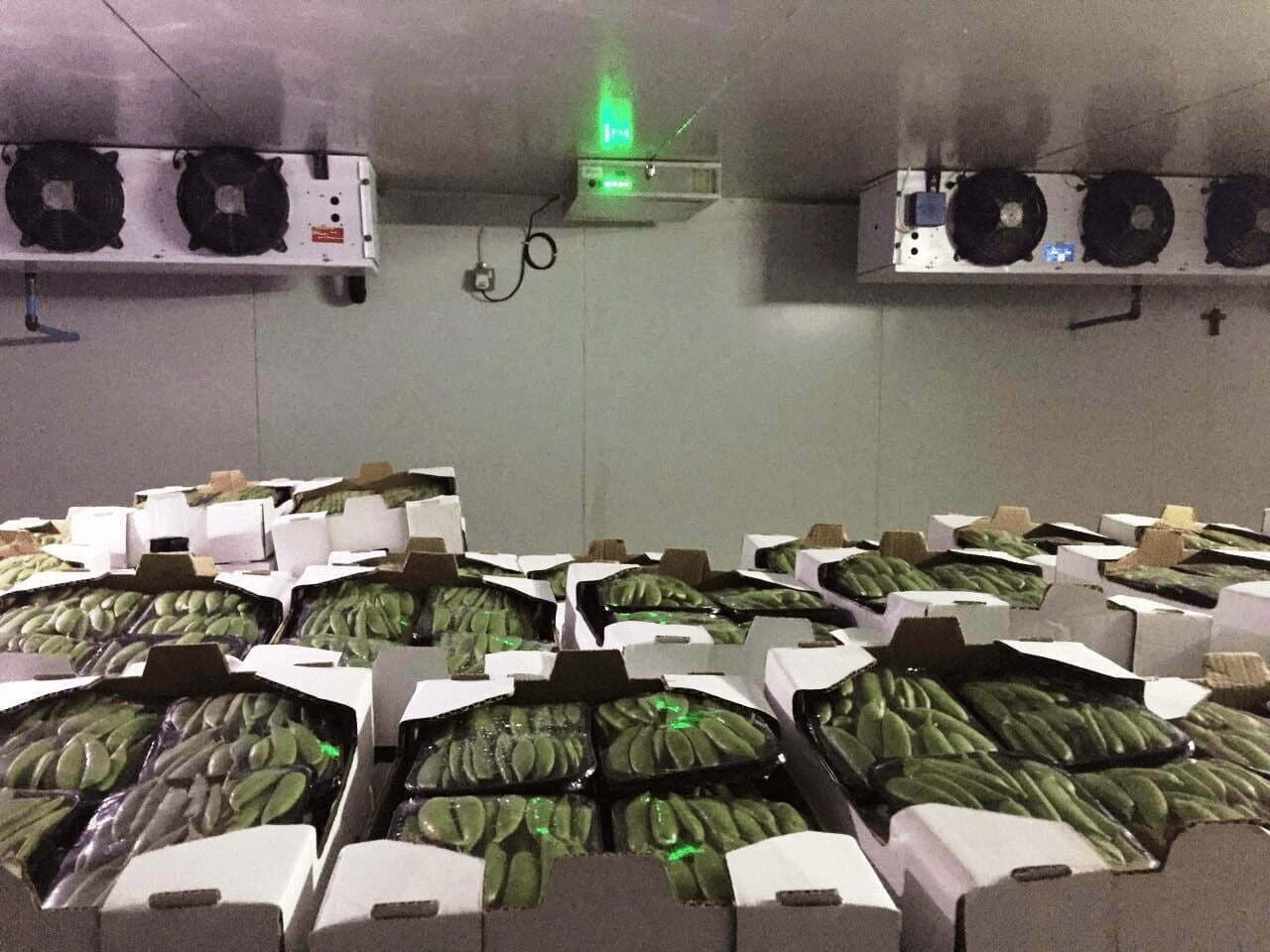

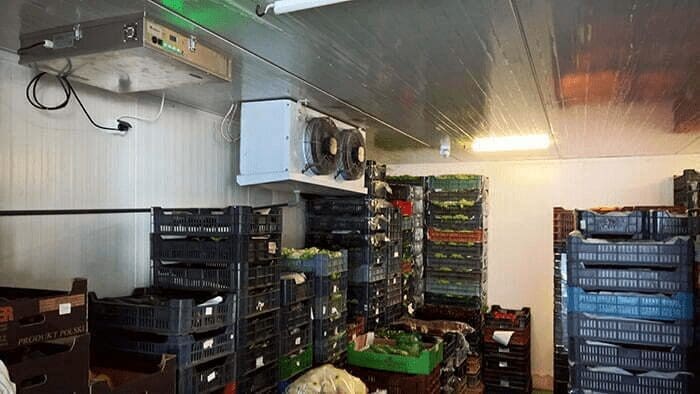

Cold rooms for storing fresh fruits and vegetables / cut flowers
Spaces / halls for growing seedlings and planting material, bulbs, etc.
Transit and/or distribution centers for fresh fruits and vegetables/cut flowers
Fruit research stations
Vegetable research and production stations
Cold rooms for storing fresh food
Sorting / packaging / marking and delivery areas for fresh fruits and vegetables / cut flowers
Fresh fruit and vegetable processing/packaging areas
Fruit/vegetable/mushroom canneries
Cold rooms for storing fresh mushrooms
Cold rooms for storing snails
Cold rooms for storing fresh fruits and vegetables in hotels, restaurants, canteens, yachts, cruise ships, oil platforms
Dining areas, fresh fruit and vegetable islands
Cold rooms for storing grapes
Grape processing/packaging areas
Barrel cellars
Cold rooms for storing fresh meat
Fresh meat processing rooms
Slaughter
Refrigerated trucks for transporting fresh fruits and vegetables / cut flowers, seedlings / bulbs
Static refrigerated containers for storing fresh fruits and vegetables / cut flowers
Chip factories / bakeries / confectioneries / patisseries
Leather / leather goods / footwear factories
Water, juice, dairy, beer bottling plants
