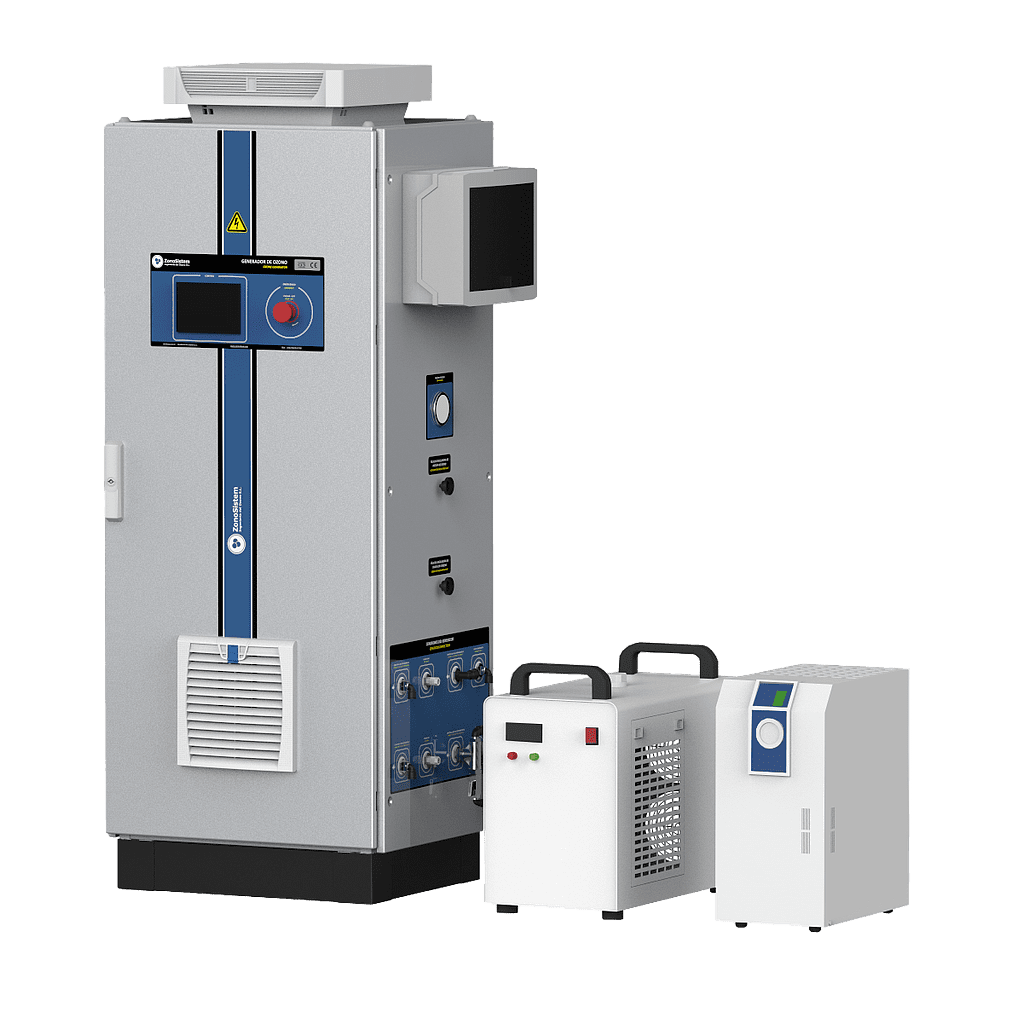

Discover the GRZO80-EPSF V5 industrial ozone generator: A powerful solution for purification and disinfection
Are you looking for a robust, reliable, and high-performance solution for water or air treatment in an industrial or professional setting? The GRZO80-EPSF V5 is a compact Type B ozone generator designed to meet the most demanding requirements for purification, disinfection, and environmental treatment. With an ozone production capacity of 80 gO3/h and a concentration of up to 200 g/Nm³, this generator is an essential tool for numerous industrial applications.
Technical specifications of the GRZO80-EPSF V5
The GRZO80-EPSF V5 is a state-of-the-art device, incorporating high-quality components to ensure durability and efficiency. Here are its key technical features:
- Ozone production: 80 gO3/h, with a maximum concentration of 200 g/Nm³.
- Electrical power: 400 V, 3P+N, 50 Hz, 3.2 kW.
- Technology: Utilises high-frequency corona discharge technology with a borosilicate dielectric virole for optimal ozone generation.
- Cooling system: Glycol-cooled with an integrated water chiller, using a refrigerant liquid to maintain stable performance.
- Integrated components:
- Oil-free double-piston compressor for reliable air supply.
- PSA oxygen concentrator, delivering 95% pure oxygen for efficient ozone production.
- Air drying system with a dew point of -30°C, ensuring dry air for optimal performance.
- Microfiltration system with condensate purge for impeccable air quality.
- Flow meter, pressure gauge, and ozone leak sensor for precise control and enhanced safety.
- Control and interface: Equipped with an electrical protection panel featuring a programmable logic controller (PLC) and an intuitive touchscreen for easy treatment programming. An integrated router enables remote access and control via a VPN connection.
- Certifications: CE marked, compliant with European safety and quality standards.
This generator is designed to be plug-and-play: simply connect it electrically, and it’s ready to operate. Its robustness and reliability make it a top choice for demanding applications.
Applications of the GRZO80-EPSF V5
Ozone is a powerful natural oxidant, widely used for its disinfectant, purifying, and eco-friendly properties. The GRZO80-EPSF V5 is suitable for a wide range of sectors due to its ability to produce large quantities of ozone in a controlled manner. Here are some of its main applications:
- Water treatment:
- Wastewater Treatment Plants (WWTP): Ozone eliminates organic contaminants, bacteria, and viruses, improving water quality before discharge or reuse.
- Public Water Treatment Plants (WTP): Ensures drinking water is free from pathogens and pollutants.
- Swimming Pools and Water Parks: Ozone disinfects water without leaving chemical residues, offering an eco-friendly alternative to chlorine.
- Aquaculture and Aquariums: Maintains clean, healthy water for fish, reducing disease risks.
- Lake and Pond Restoration: Ozone helps restore aquatic ecosystems by removing pollutants and improving oxygenation.
- Agricultural Irrigation: Treats irrigation water to eliminate pathogens, protecting crops and boosting yields.
- Air Disinfection and purification:
- In industrial environments, the GRZO80-EPSF V5 can eliminate odours, disinfect air, and control microbial contaminants in facilities such as food processing plants or warehouses.
- Food Industry:
- Fruit and Vegetable Washing: Ozone disinfects fresh produce, extends shelf life, and removes pesticide residues without chemicals.
- Environmental applications:
- Ozone is used to treat contaminated soils or purify industrial wastewater, contributing to more sustainable practices.
Advantages of the GRZO80-EPSF V5
- Energy efficiency: With a 3.2 kW consumption, this generator offers an excellent performance-to-energy ratio.
- Ease of use: The touchscreen allows programming of treatment cycles via a recipe planner, making the device user-friendly even for novices.
- Enhanced safety: The ozone leak sensor and electrical protection systems ensure safe operation.
- Simplified maintenance: A detailed user manual and high-quality components (316L stainless steel, Viton, Teflon) reduce maintenance needs.
- Connectivity: The integrated router enables remote monitoring and control, ideal for automated setups.
- Eco-Friendly: Ozone naturally decomposes into oxygen, leaving no chemical residues, making it an environmentally friendly solution.
How the GRZO80-EPSF V5 Works
The GRZO80-EPSF V5 is designed for easy integration into existing systems. When activated, the compressor draws in ambient air, which is filtered, dried, and enriched with oxygen by the PSA concentrator. This purified oxygen is then converted into ozone using corona discharge technology. The produced ozone is injected into the water or air to be treated, for example, via a venturi for hydraulic applications, where it acts as a powerful disinfectant. The flow meter allows precise regulation of the oxygen flow, optimising ozone production based on requirements.
Why Choose the GRZO80-EPSF V5?
The GRZO80-EPSF V5 stands out for its versatility, durability, and ease of use. Whether you manage a water treatment plant, an agricultural operation, an aquaculture facility, or a food processing plant, this ozone generator provides a reliable solution for your purification and disinfection needs.
